3D Prints Replacement Components

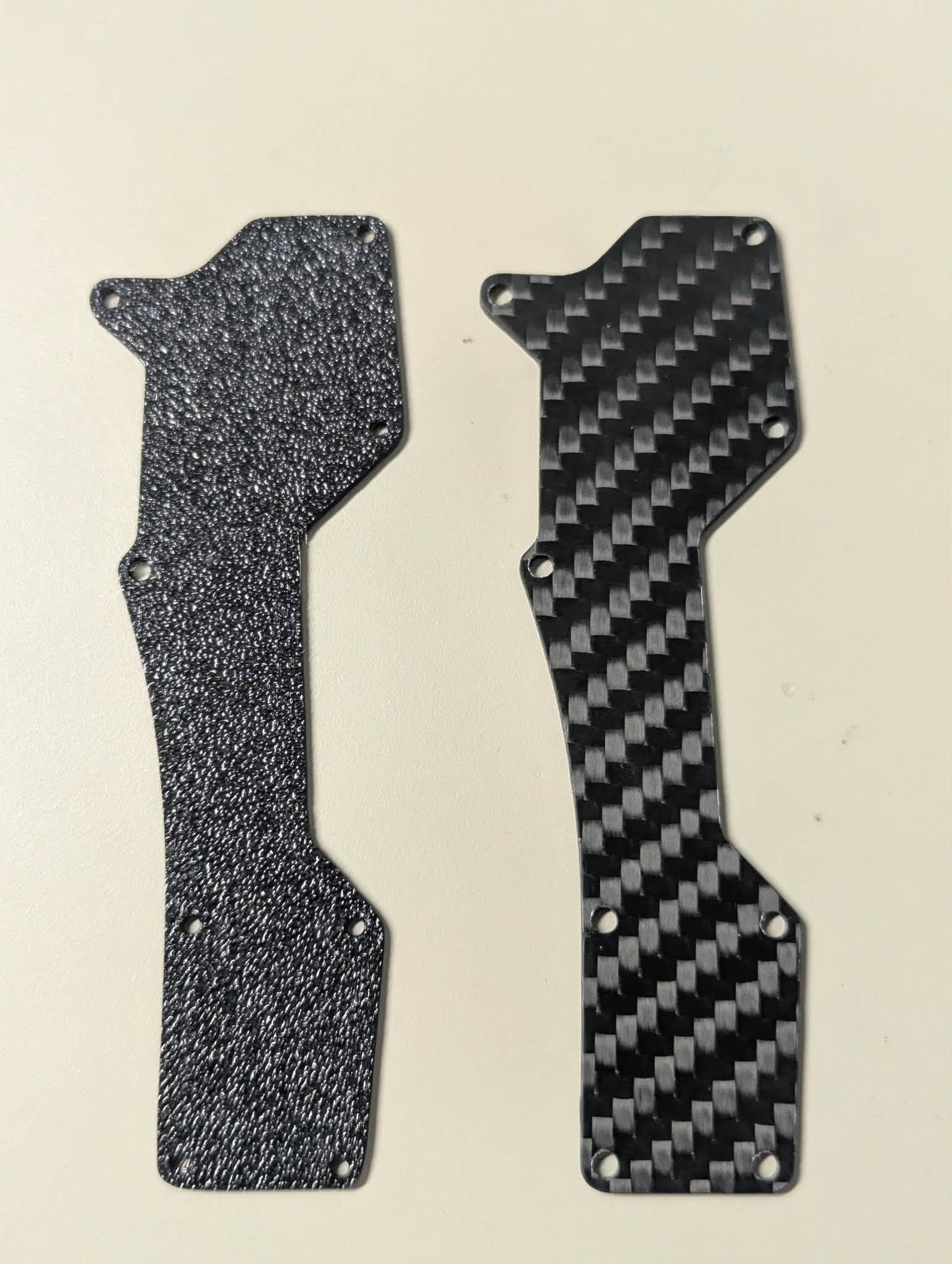

This project demonstrates precision reverse engineering and rapid manufacturing. The original carbon fiber component (right) was digitally mapped to capture its exact dimensions and mounting points. The final 3D-printed replica (left) features an engineered textured finish for enhanced durability and aesthetics. The result bridges physical reference parts, CAD modeling, and functional 3D printing.
Customer Need
Replication: 1:1 functional replica of a carbon fiber mechanical part. Accuracy: Exact matching of asymmetrical profiles and mounting holes.
Work Scope
Reverse Engineering: Measuring physical reference dimensions. 3D Modeling: Creating an accurate digital CAD file. Additive Manufacturing: 3D printing a textured, high-resolution physical component.
Turnaround
1~2 days
Price Range
35 HKD
Result
Perfect Alignment: All five screw holes align seamlessly with the original. Premium Finish: Textured surface minimizes visible layer lines. Functional Matching: Delivered a production-ready substitute part.
